WD Autonomous Outdoor Robot Development Platform for Material Handling (HK1500) – Configurable

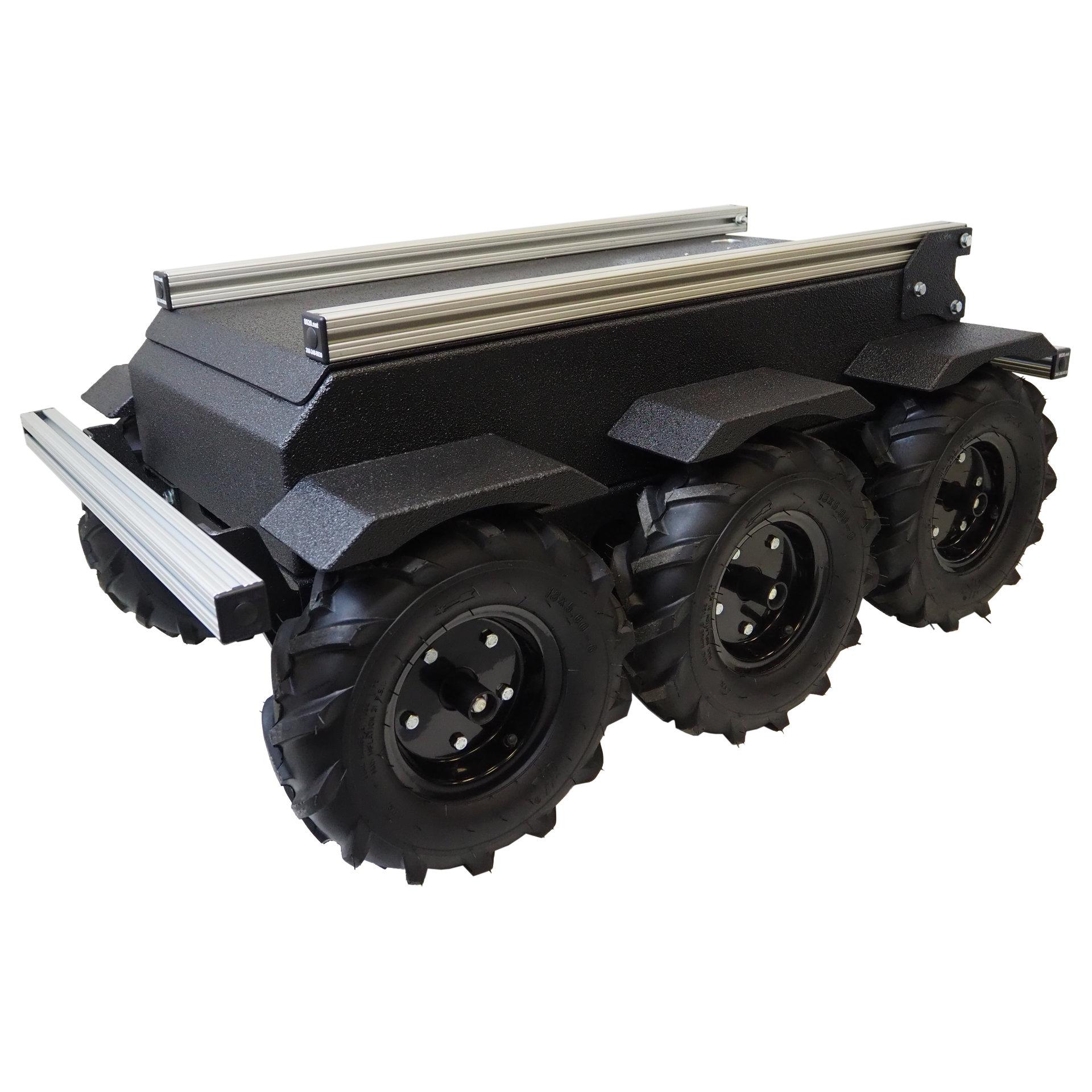

This is a 6WD robot that uses six of our heavy-duty motors and 13″ tiller tires. The wheels are mounted directly to the motor shaft for simplicity. High ground clearance, high payload, and powerful motors make this robot a workhorse.

The robot is being sold in the configuration listed below. The robot is fully assembled, wired, programmed with speed control, tested and ready to run. A ROS control package is available as an option.

Specifications

• Drive Method: Direct Drive.
• Axle Mount: Direct Mount (DM) – the axles are mounted directly to the motor shaft.
• Speed: ~3 mph (75 RPM motors and 13″ wheels).
• Dimensions (LxWxH): 41 x 26 x 19.5 inches.
• Weight: Approximately 200 lbs.
• Capacity: Payload of approximately 200 lbs (can handle more if needed but runtime will be degraded).

Standard Configuration

This is a complete package that includes everything listed below.

• Complete assembly, wiring, setup, and testing.
• Custom 2-tone textured bedliner paint with 80/20 mounting rails on top, sides, and bumpers.
• Large top Lid for easy access of electronics and batteries. Ample room for additional electronics.
• Includes the chassis, hardware, and wiring kits.
• Six powerful 75 RPM Wheel Chair Motors with encoders added for velocity control of the motors.
• Qty. 3 13 inch direct drive wheel and shaft set. (Total of 6 wheels and shafts, 3 sets of 2).
• Qty. 2 12V 35Ah batteries providing 1-3 hours of operation depending on use.
• Includes battery charger.
• Qty. 1 RoboteQ 2x150A Motor Controller.
• Other Electronics Components:
• • 100A breaker switch.
  • Completely wired including all necessary high current wiring, mounting hardware, zip ties, cable tie downs, etc.
• Basic ROS Control Package

This robot comes with encoders used for speed control/velocity control. They are very useful if you are planning on making your robot semi-autonomous or fully autonomous.
