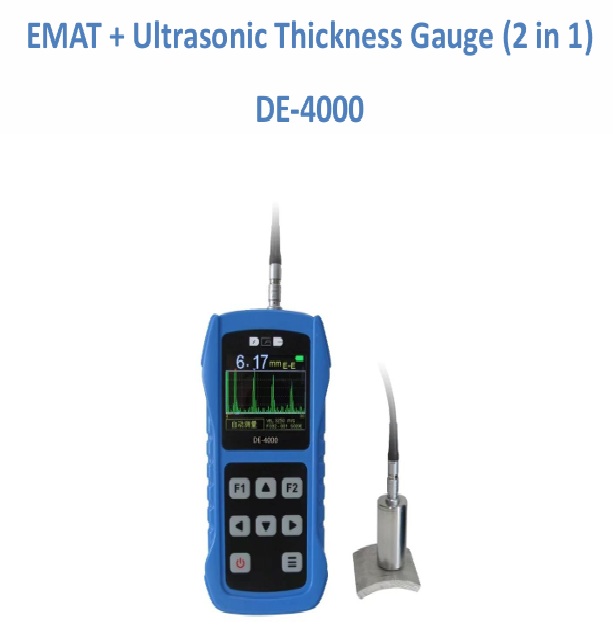

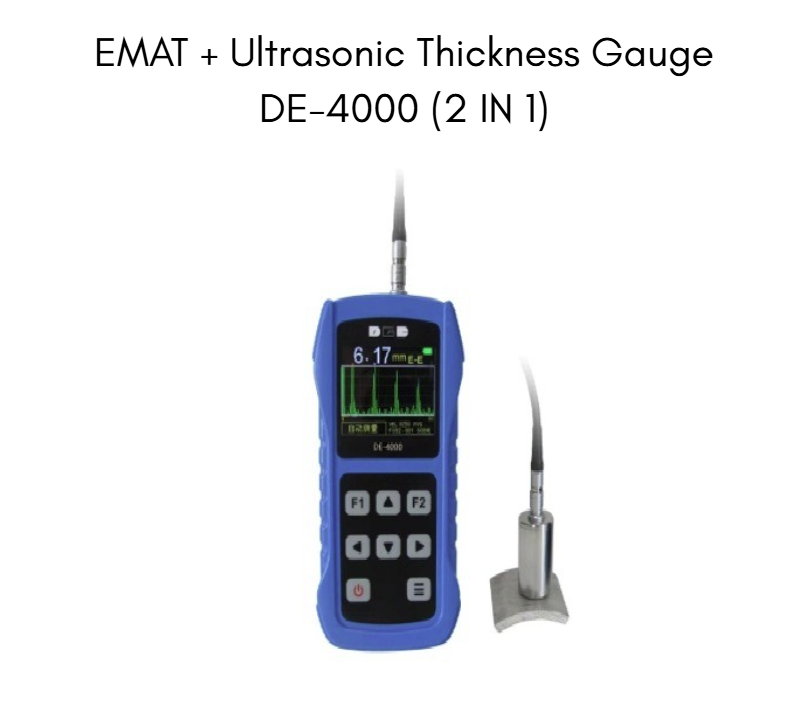

EMAT + Ultrasonic Thickness Gauge DE-4000
Description
Features:
⚫ EMAT + Ultrasonic Thickness Gauge 2 in 1
⚫ No need of couplant
⚫ workpiece surface temperature less than 600℃ depending on transducers
⚫ The larger colorful TFT display 320×240
⚫ Suitable for both metal, such as steel pipe walls, flat steel, rods, or other products made of
metal, even rust or corrosion on the surface; and non-metal such as Polyethylene
⚫ Not sensitive to coating on the surface, so thickness of workpiece with coating could be
tested
⚫ Suitable for different shapes of metal, such as small pipe, elbow pipe and so on
⚫ Widely application in Petrochemical industry, Metallurgy, Shipbuilding, Wind power,
Nuclear electric power, Aerospace and so on
⚫ Large memory of 10, 000 data; data transfer with software free
⚫ Auto power off for saving battery power
Technical Specification：
1. EMAT Thickness Gauge
Measuring range – 1.5-300mm (depend on transducers)
Resolution – 0.01mm
±0.04mm (H＜9.99mm)
Accuracy -±0.04mm (H＜9.99mm), ±(0.1%H +0.04)mm 10<=H＜100mm, ±0.3%H H＞100mm
Temperature range – -15—600℃ (depend on transducers)
Gain – Auto and Manual
Scan mode – A and B Scan
Excitation mode – Permanent magnet
Transducer – Anti-impact, stand wear and tear
Transducer classification – Normal or high temperature transducer
Memory – 10,000 data
Output – USB, software free
Display – 320×240 color display
Power – Li battery
Temperature -20℃～+50℃
Dimension – 181mm×93mm×29mm
Weight – 0.4Kg (Battery included)
2. Ultrasonic Thickness Gauge
Measuring range – T-E: 0.8mm～300.0mm
Resolution – 0.01mm
Accuracy – ±0.04mm (H＜9.99mm), ±(0.1%H +0.04)mm 10<=H＜100mm, ±0.3%H H＞100mm
Gain – Auto and Manual
Scan mode – A and B Scan
Temperature -20℃～+50℃
Standard Delivery:
⚫ Main unit
⚫ Transducer S020E + DE508
⚫ Calibration block
⚫ USB cable
⚫ Carrying case
⚫ Operating manual
⚫ Calibration certificate
EMAT Optional Transducer:
Model Measuring Range
S010E 1.5-60mm
S015E 1.5-150mm
S020E 1.5-200mm
S025E 1.5-300mm
S030E 1.5-200mm
